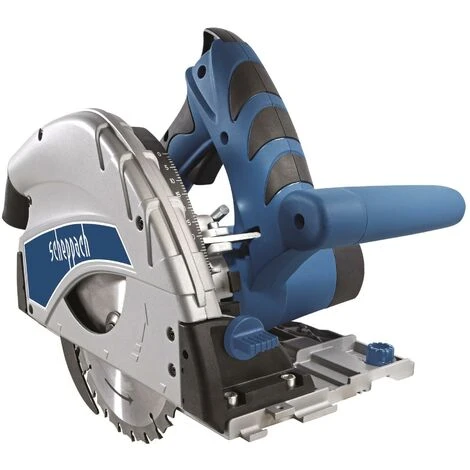

SCHEPPACH PL55 PLUNGE SAW + 2800 MM GUIDE TRACK + KIT ACCESSORIES

SCHEPPACH PL55 PLUNGE SAW + 2800 MM GUIDE TRACK + KIT ACCESSORIES

GUIDE TRACKS 2800 mm COMPOSED OF:  2×700 mm + 1×1400 mm

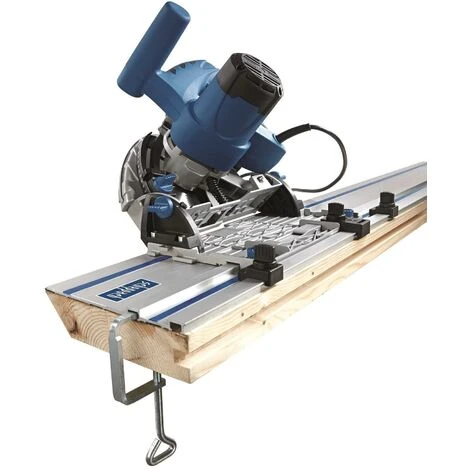

THE COMBINATION OF A SCHEPPACH PL55 – PLUNGE SAW, AND A
GUIDE RAIL WILL CREATE A SYSTEM THAT GENERATES PRECISION
CUTS ANYWHERE THAT SHOULD NEVER BE ATTEMPTED WITH A
TRADITIONAL CIRCULAR SAW

• Powerful 1200 Watt Motor
• Parallel plunge allows the user to maintain a smooth and constant hand
position while cutting
• A 24 teeth blade gives a fine and accurate finish with very little
breakout in laminates
• The enclosed guard gives a 90 % dust extraction capability
• 55 mm depth of cut allows the trimming and sizing of most common
door sizes
• Suitable for boards and solid wood
• Maximum precision, even when cutting free hand
• 16 mm – close to wall cut

SPECIFICATIONS

Dimensions L x W x H 340 x 260 x 235 mm
Blade Ø 160 mm
Arbor Ø 20 mm
Blade speed 5500 rpm
Max. cut 90° 55 mm
Max. cut 45° 45 mm
Bevel capacity 0 – 45°
Close to wall cut 16 mm
Dust collection Ø inner / outer 35 mm / 38 mm
Weight 4.8 kg
Motor 230 – 240 V
Input 1200 W
