Scheppach HM140L 305mm Double Bevel Sliding Mitre Saw 230 V

The Scheppach HM140L is a double bevel sliding mitre saw that offers all round accuracy and performance. It comes with a powerful 2000 W motor and offers an impressive 105 mm cutting depth and 330 mm crosscut facility for cutting wider boards. The blade can be angled to 45° both left and right which will allow you to perform mitre cuts, bevel, compound, and double angle cuts. It is supplied with 2 x top quality tct sawblades which will produce precise cuts in all types of materials including wood, processed timbers, and plastic. The Scheppach HM140L is a fantastically priced machine that is ideally suited for larger workshops and professional tradesman needing a precision mitre saw.
Die-cast aluminium sliding mitre saw designed for easy transport
Powerful 2000 W motor provides user with constant torque

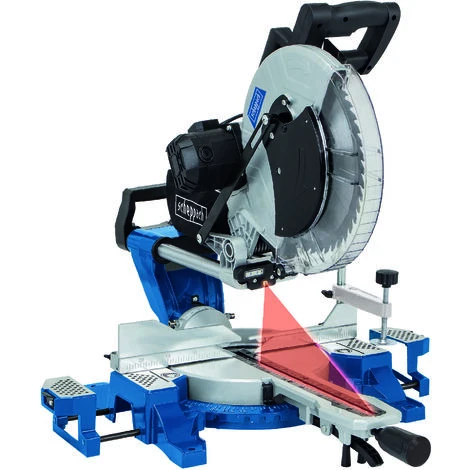

Precise laser line cutting – Large cross cutting width of 330 mm

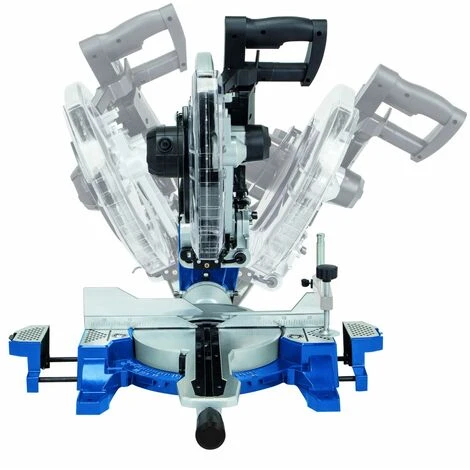

Versatile double bevel sawing head for making a variety of cuts
Light weight die-cast aluminium construction
47° Angle adjustment to left and right
Dual slide rail system with linear bearings allows for accurate operation
Includes 2 x tct sawblade (24T / 48T)
2 x quick release die cast alloy sliding base extensions

Supplied with HM140L : 2 x 305 mm TCT sawblade, dust extraction bag, hold down clamp, 2 x die-cast table extension supports, instructions
Specification
Dimensions L x W x H 890 x 615 x 490 mm
Blade diameter 305 mm
Blade speed 3800 rpm
Bevel Type 2 x 45°
Mitre Capacity 45° left – 45° right
Mitre slots 45-31.6-22.5-0-22.5-31.6-45º
Cross cut at 90° 330 x 105 mm
Mitre cut at 45° 230 x 105 mm
Bevel cut at 45° 330 x 60 mm
Compound cut at 45° 230 x 60 mm
Weight 21 kg
Motor: 230 V – 50 Hz
Input 2000 W
