- Length12.7 cm
- Width29.5 cm
- Height37.0 cm
- Weight12.7 kg
- Power120.0 W
- Rotational speed1700.0 rpm
- MaterialPlastic, Metal
- Power supplyElectric
- Starting the thermal engineElectric
- Pcs per pack1.0 products
- OriginMade in Germany
- Availability of spare parts5.0 year
- Cutting depth5.0 cm
- ManoMano ReferenceME55200046
- Warranty2 years
- Product code5901403903

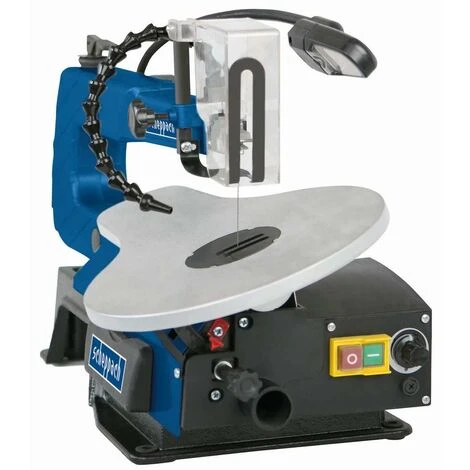

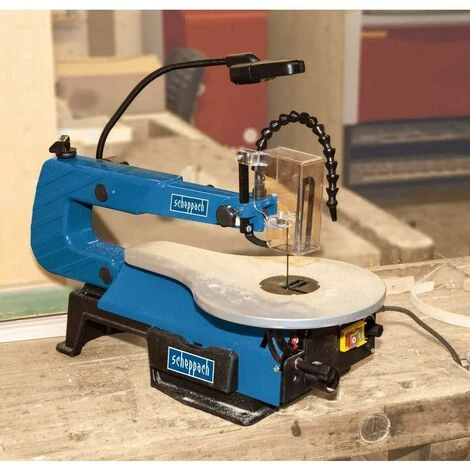

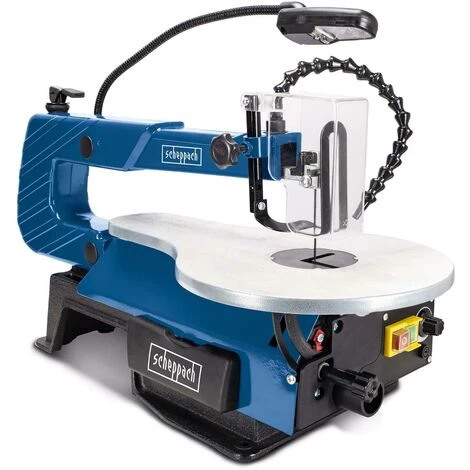

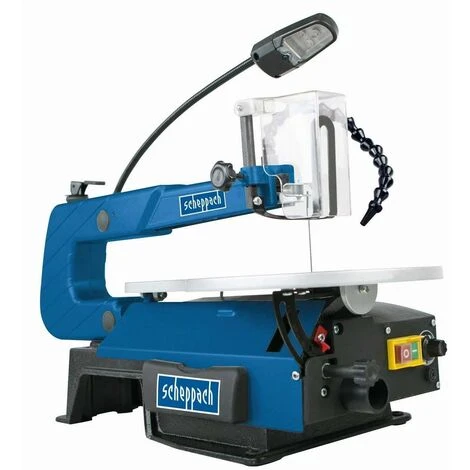

Thanks to its extensive equipment, the SD1600V scroll saw from scheppach is the perfect addition to any workshop.
Ideal for beginners and advanced users for complex sawing work in model building and hobby areas.
The low-vibration 120 watt motor enables precise sawing of filigree shapes and professional results.
• Cutting height/depth: 50/406 mm
• Saw blade length 134 mm
• Work table can be tilted to 45°
• Adjustable stroke rate 500 – 1,700 rpm and 12 mm lifting height
• Flexible LED light to illuminate the work area
• Fits scroll saw and standard fret saw blades with lengths of 127 (134) mm
• Quick-release lever for easy saw blade replacement
• Low vibration for perfect and precise sawing results
• Unobstructed view of the work area, thanks to fl exible blower nozzle
• Retaining device for work pieces to make guidance easier
• Storage space for saw blades
A scroll saw like the SD1600V from Scheppach is the perfect choice when it comes to cutting wood with millimeter precision and fine contours for maximum precision.
The thin saw blade can be maneuvered precisely through the workpiece with a maximum height of 50 mm.
Thanks to its maneuverability, even finely divided and round shapes can be achieved.
With 1,700 revolutions per minute, the SD1600V is in the upper range of scroll saws and works comparatively faster than other models.

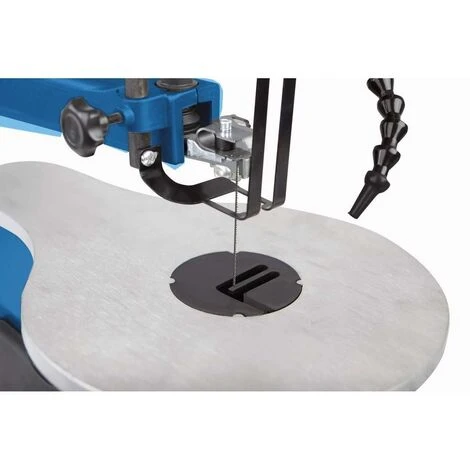

A quick-clamping system makes it easier to change the saw blade. The saw blade holder allows saw blades with or without a pin to be clamped with a saw blade length of 134 mm. The SD1600V comes with a practical integrated storage space for unused saw blades.
With an easily accessible rotary control, the stroke rate can be varied from 500 to 1700 rpm – for individual speeds of the saw blade and better results.
The inclination of the table can be adjusted precisely using a square on the underside of the table. Up to +45° inclination is possible.
This not only allows you to make straight and round cuts in wood, plastic, metal, plaster or plexiglass, but also individual angles.
The tool retainer ensures easy and safe guidance of the workpiece and thanks to the LED lamp you always have the best view of your work.
With a smaller stroke, i.e. slower cuts, it can happen that the view is obstructed by chips that are not completely removed from the cut surface.
This is where the blower comes into play – a flexible blower nozzle always gives you a clear view of the work area, as chips and dust are removed as soon as they occur.
Technical data
Dimensions L x W x H 630 x 295 x 370 mm
Table size L / W 255 x 415 mm
Table adjustment 0° – 45°
Stroke speed 500 – 1700 rpm
Cutting height / depth 50 / 406 mm
Suction connector diameter 35 mm
Motor 220 – 240 V~
Input 120 W
Weight net / gross 12.7 / 14.8 kg
Packaging dimensions 655 x 285 x 365 mm
