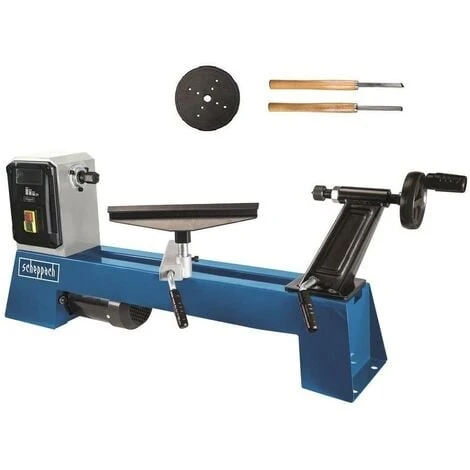

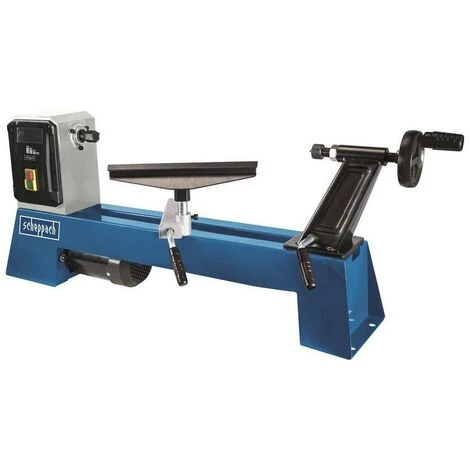

230V HOBBY LATHE FOR WOOD 500 MM 400W SCHEPPACH DM500T

230V HOBBY LATHE FOR WOOD 500 MM 400W SCHEPPACH DM500T

The wood-turning lathe DM500T from scheppach is the ideal tool for small workpieces like pins or for miniature and model making.
Workpieces with a maximum length of 500 mm and a diameter of 350 mm fi t in between the headstock with M18 thread, the 4-edge live centre and the tailstock.
A smooth running 400 W induction motor with 4 speed levels allows vibration-free wood turning, even with different material requirements.

• Compact and transportable wood-turning lathe with solid steel bed
• Smooth running 400 W induction motor with 4 speed levels
• Idle speeds 890 / 1260 / 1760 / 2600 rpm
• Headstock with M18 thread, including 4-edge live centre
• Bed height 175 mm
• Stability thanks to the weight of 18 kg to allow vibration-free working
• Tool support with adjustable support surface
• Max. size of workpiece 350 x 500 mm

Technical data:

Dimensions L x W x H 890 x 325 x 415 mm
Bed height 175 mm
Speed 890 / 1260 / 1760 / 2600 rpm
Spindle head thread M 18
Max. Ø over bed 350 mm
Distance between centres 500 mm
Motor 230 – 240 V~ / 50 Hz
Input 400 W
Weight net / gross 18 / 19 kg
Packaging dimensions 910 x 305 x 435 mm
