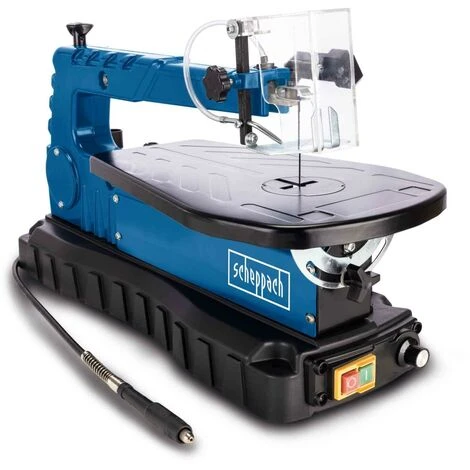

230V 16 Scroll Saw With Flexible Shaft SCHEPPACH DECO FLEX SL

The scheppach DECO FLEX SL scroll saw with a flexible shaft is the perfect choice when it comes to cutting wood with millimeter precision, fine contours and clean reworking for maximum precision.
The thin saw blade can be maneuvered precisely through the workpiece with a maximum height of 50 mm.
Thanks to its maneuverability, even finely divided and round shapes can be achieved.

• Cutting height/depth: 50 / 405 mm
• Wide worktable can be tilted by -45° till +45° on both sides
• Variable stroke rate of 550 – 1500 rpm and 18 mm lifting height
• Fits scroll saw and standard fret saw blades with lengths of 127 (134) mm
• Quick-clamp screw for easy saw blade replacement
• Flexible shaft with drill chuck for cutting, grinding and polishing
• LED work lamp to illuminate the work area
• Workpiece retainer for easier sawing of cut outs
• Low vibration for optimum and precise sawing results
• Blowing nozzle for a clear view of the work area

A scroll saw is the perfect helper for precise, demanding and millimeter-accurate cuts in wood, but also in plastic, metal, Plexiglas or plaster.
With the thin saw blade, not only particularly fine contours and clean reworking are possible, but also fine-grained and round shapes thanks to its maneuverability.

The scheppach DECO FLEX SL scroll saw works particularly quickly with a variable speed of 550 to 1500 revolutions per minute.
The maximum cutting height is 50 mm with a maximum depth of 405 mm. A flexible LED work lamp ensures that the work area is always optimally illuminated.

The saw blade holder allows saw blades with or without a pin to be clamped with a saw blade length of 127 mm. It is also possible to use a circular saw blade.
A quick-clamping system makes it easier to change the saw blade.

The additional flexible shaft with drill chuck for professional reworking of your own patterned parts is included in the scope of delivery.

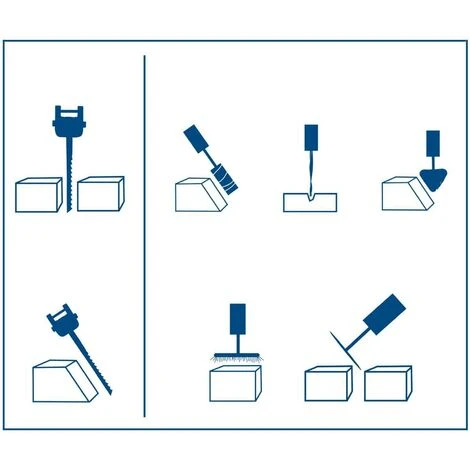

With 1650 – 4500 min-1 and the appropriate attachments, cut edges are smoothed, burrs removed and surfaces polished, even engraving is possible without having to purchase another device.

The inclination of the table can be adjusted precisely using a square on the underside of the table. Up to 45° inclination is possible.
This not only allows you to make straight and round cuts in wood, plastic, metal, plaster or plexiglass, but also individual angles.

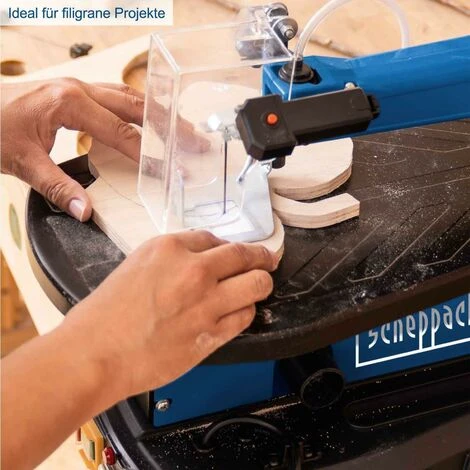

The workpiece hold-down device ensures that the workpiece is guided more easily and securely, even when it is in an inclined position.

With a smaller stroke, i.e. slower cuts, it can happen that the view is obstructed by chips that are not completely removed from the cut surface.
This is where the blower comes into play – a flexible blower nozzle always gives you a clear view of the work area, as chips and dust are removed as soon as they occur.

Technical data

Dimensions L x W x H 665 x 310 x 340 mm
Table size L / W 407 x 254 mm
Table adjustment -45° till +45°
Stroke speed 550 – 1500 rpm
Cutting height / depth 50 / 405 mm
Suction connector diameter 34.5 mm
Flexible shaft length 1000 mm
Speed shaft 1650 – 4500 rpm
Motor 230 – 240 V~ / 50 Hz
Input 90 W
Weight net / gross 8.1 / 10.1 kg
Packaging dimensions 730 x 345 x 410 mm
