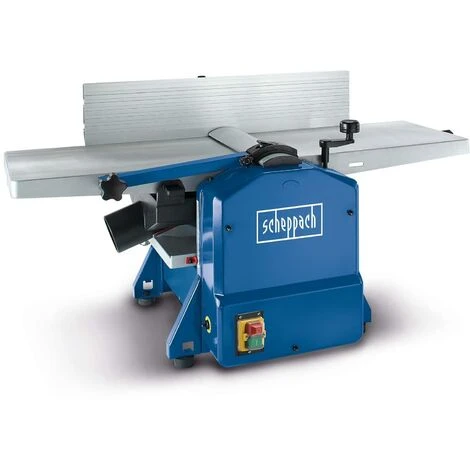

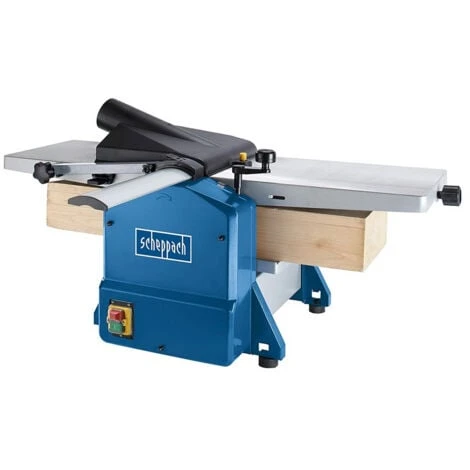

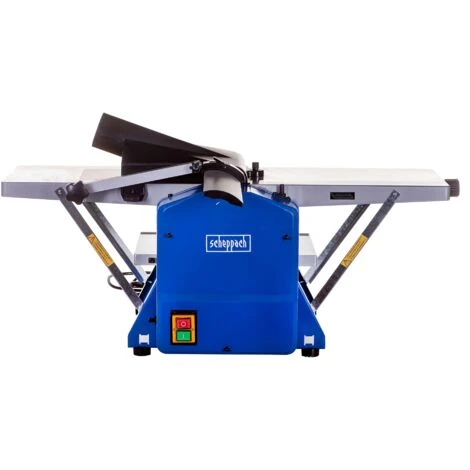

230 VOLTS PLANER THICKNESSER 1500 WATT 254 MM SCHEPPACH HMS1070

The HMS1070 from scheppach is a combined planing and thicknessing machine with an accurate planing table made of die-cast aluminum for demanding do-it-yourselfers and the best planing results. The ideal device for mobile use: small, handy and light. A secure stand, the swiveling planing fence, the manual height adjustment and the connection to a dust extraction system enable comfortable working.

• Combined planer thicknesser for small workshops
• Powerful 1500 W motor for versatile use
• Compact table model with a thickness capacity / width of 120 and 254 mm
• Planer fence for precise angles of 90° to 135°
• Two high-speed planer knives for smooth, precise planing
• Easy height adjustment using knob

Technical data:

Dimensions L x W x H 960 x 460 x 485 mm
Surfacing table size 920 x 264 mm
Thicknessing table size 380 x 254 mm
Number of blades 2
Planing shaft speed 8500 rpm
Weight net / gross 26 / 30.5 kg
Packaging dimensions 1020 x 525 x 445 mm

SURFACE PLANING
Plane width max. 254 mm
Stock removal max. 2 mm

THICKNESSING
Thickness capacity / width 120 / 254 mm
Stock removal max. 2 mm
Motor 230 V~ / 50 Hz
Input 1500 W
